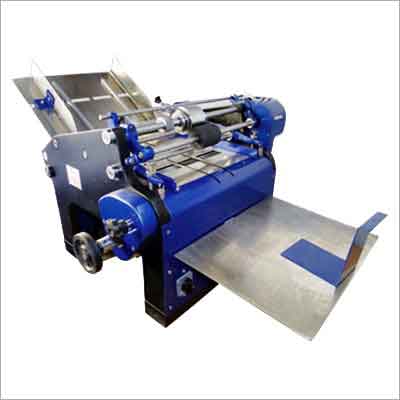

High Speed Batch Coding Machine For Labels & Cartons

It is mandatory for manufacturers of packaged goods to code information"s like Batch No., Date of Mfg., Expiry Date, Prices & other statutory information on various pickings, PCS Coding Machines are the best options for Coding on plastic, HDPE bottles, pouches, tin containers, woven sacks, paper etc. The machine is compact & consistent in printing quality. It is easy to install & operate & has rugged powder coated metal body.

Features:

It is electro mechanical fully automatic high speed coding system.

Once stacks the labels / cartons in order on sloping plane tray (Dispenser) for feeding.

Its automatically Packed up by rubber friction insert, fed to printing one by one via guide

Specifications :

Product Name	Hand Batch Coding
Specifications	Value
Model	HSLC- 200
Substrate	Labels / Pouches
Max. Substrate size (mm)	204 * 154
Min. Substrate size (mm)	50 * 16
Supply Voltage	3Ø 440 V ac ± 10 %, 180 W
Printing Area	6 to 8 lines ( 57 * 200 mm)
Printing Speed	125 / 180/ 250 imprints/ min.
Prints using	Easily Changeable grooved/ flat, rubber/ nylon stereos
Inking Medium	Rechargeable liquid ink cartridge/ lapping roller for paste
Printing Medium	Quick drying ink/ Paste (Black, Violet, Red, Green, etc.)
Impressions	15,000imp. per 20 ml. charge / 10,000 per 10 gm. Paste
Geared Motor	400/ 440 Volts 3 Phase ¼ H.P.136 RPM geared head motor
Weight	85 Kg (Approx.)
